R35 Brake conversion kit for the R32, R33, R34 GTR models.
New revision 2 kits featuring lightweight brackets and full set of lightweight bells compared to our previous design with no compromise in strength and no more trimming of front hub brake line mounting lug.
Both the adapter brackets and lightweight bells are made from billet 7075 T6 grade aluminium. Not to be confused with cheaper kits, the Supertec Racing Kits are designed manufactured to the highest standards in the UK with FEA (Stress analysis and simulation) to ensure the highest strength and reliability.
Beware of cheaper kits using weaker 6061 grade alloys as from our extensive testing and partnership with an industry leader in aftermarket automotive and motorsport manufacturing, the 7075 T6 alloy is the absolute material of choice for structural brake components such as mounting brackets and bells.
New spec one piece rear lightweight bells with reduced diameter for compatibility with Skyline e-brake diameter now saves approx 3.9kg per side over oem R35 bells reducer rings.
Kit is compatible with both early and late R35 calipers for 380mm/ 390mm front discs.
The standard kit comes supplied with the following items:

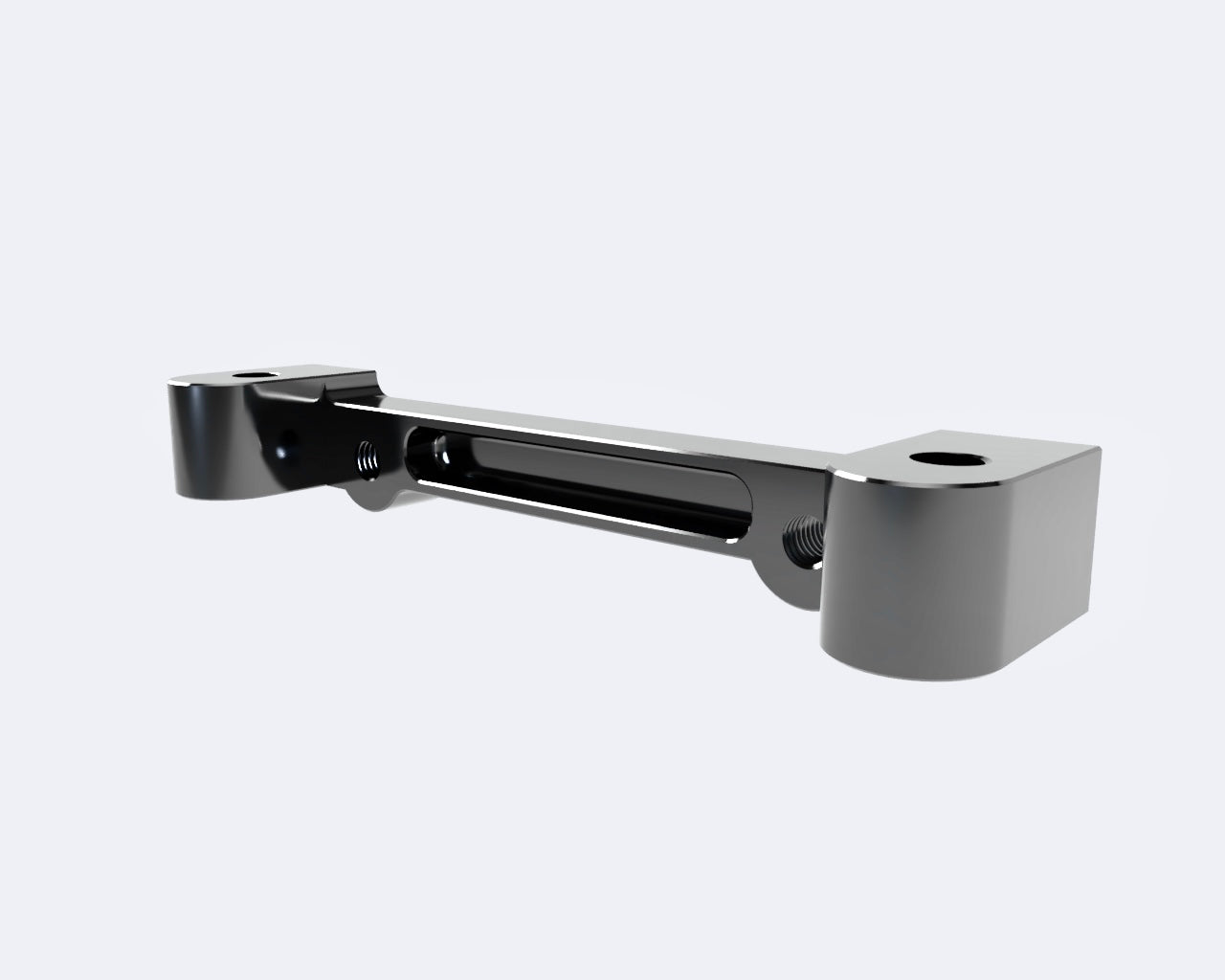

- Front caliper to hub brackets (244g saving each)
- Rear caliper to hub brackets (90g saving each)
- Lightweight front bells (100g saving each)
- Lightweight rear bells (130g saving each)
- High tensile bolt kit
*Requires front and rear R35 calipers, brake disc, pads and steel braided brake lines.
*Requires bells to disc fittings (available with selected discs such as AP Racing) otherwise bobbin kit is required - usually from AP Racing or Brembo.
*Bells are compatible with Brembo disc bobbin setup - Brembo, AP, DBA etc.
*No trimming of front hub mount lug needed, only return lip of disc backing plates required.
*Also fits Nissan 300ZX, S13, S14 and S15 models with some minor trimming work as described above.
*Suits 18” wheels such as Nismo LMGT4, Rays TE-37SL, Gram Lights 57DR, 57Xtreme (380mm only) (and variants) Typically a 380mm front kit needs 436mm of inner barrel clearance measured from when mount hub face. For a 390mm kit a clearance of 446mm is required - each of the given clearance will give approx 3mm of air gap.
*ETA for manufacturing of kit at present is early January 2022. If you require 390mm front bells (hats) these will be specially made and allow few extra weeks for this.
