Supertec Racing Spline kits for Nissan RB, Toyoya UZ-FE and 2JZ engines.
A known weak point with RB engines causing stock flat drive engagement gears to crack or shatter, we undertook 18 months of extensive R&D during 2012-2013 to develop a robust and efficient solution for the Nissan’s RB series of engines. Several spline profiles were tested and analysed on mule engines with varying levels of engine performance from 400hp to 1200hp RB30’s and up to 12000rpm.
From our testing and analysis data we have the most efficient and durable spline solution in the market today, as well as offering kits for almost all known RB oil pump from N1,Nismo, OEM to Jun, Greddy, Nitto, HKS, Tomei and our own N1 high flow conversion kit - We are a step ahead of our competitors - many of who have only start to offer iterations of a spline concept in the past 2 years.
Today our kits are used extensively through out the world, we also manufacture 2JZ kits exclusively for Do Luck Racing in Japan and we also supply to Tomei Japan as required for their customer Genesis builds.
A spline drive engagement provides full 360 degree rotational support and prevents breaking of the inner gear as is so often found with the factory flat drive setup.
Gears and collars are manufactured using EN24T and heat treated to achieve a HRC of around 38, followed by a super finishing process and featuring optimised tooth design for improved flow.

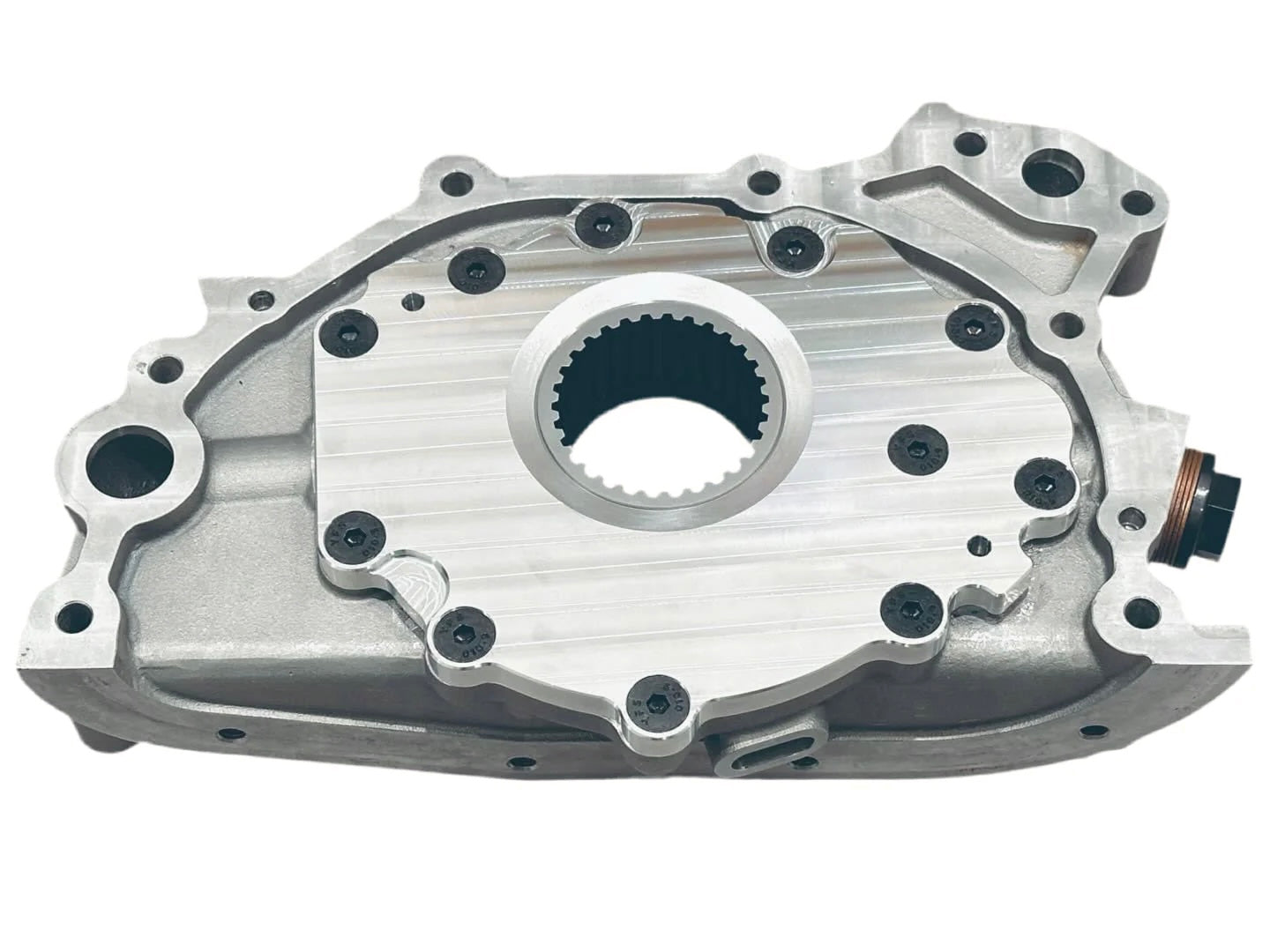

Spline Drive Gear Set for the current HKS RB26 oil pump - 3 piece setup consisting of inner, outer gears and splined collar.

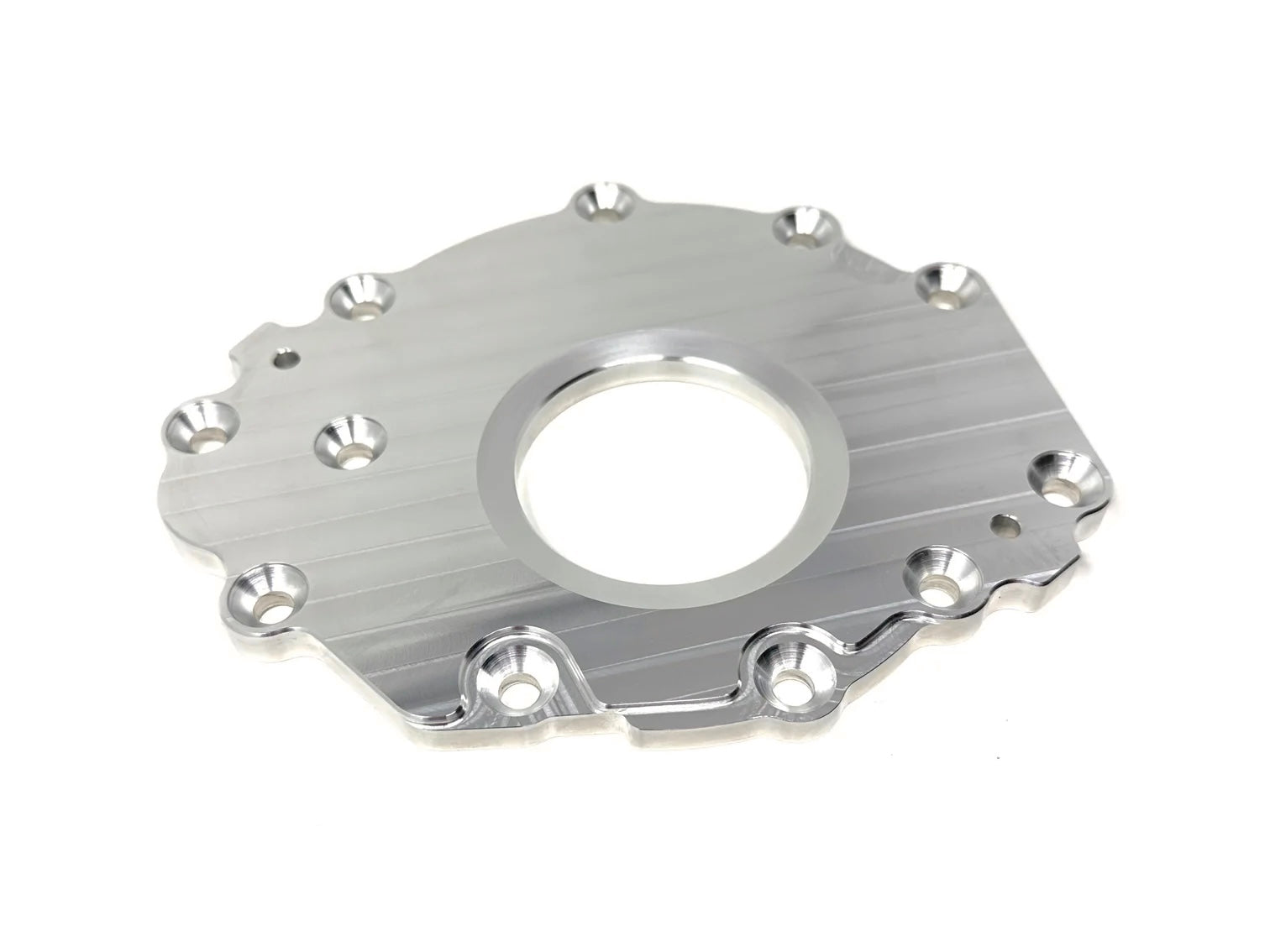

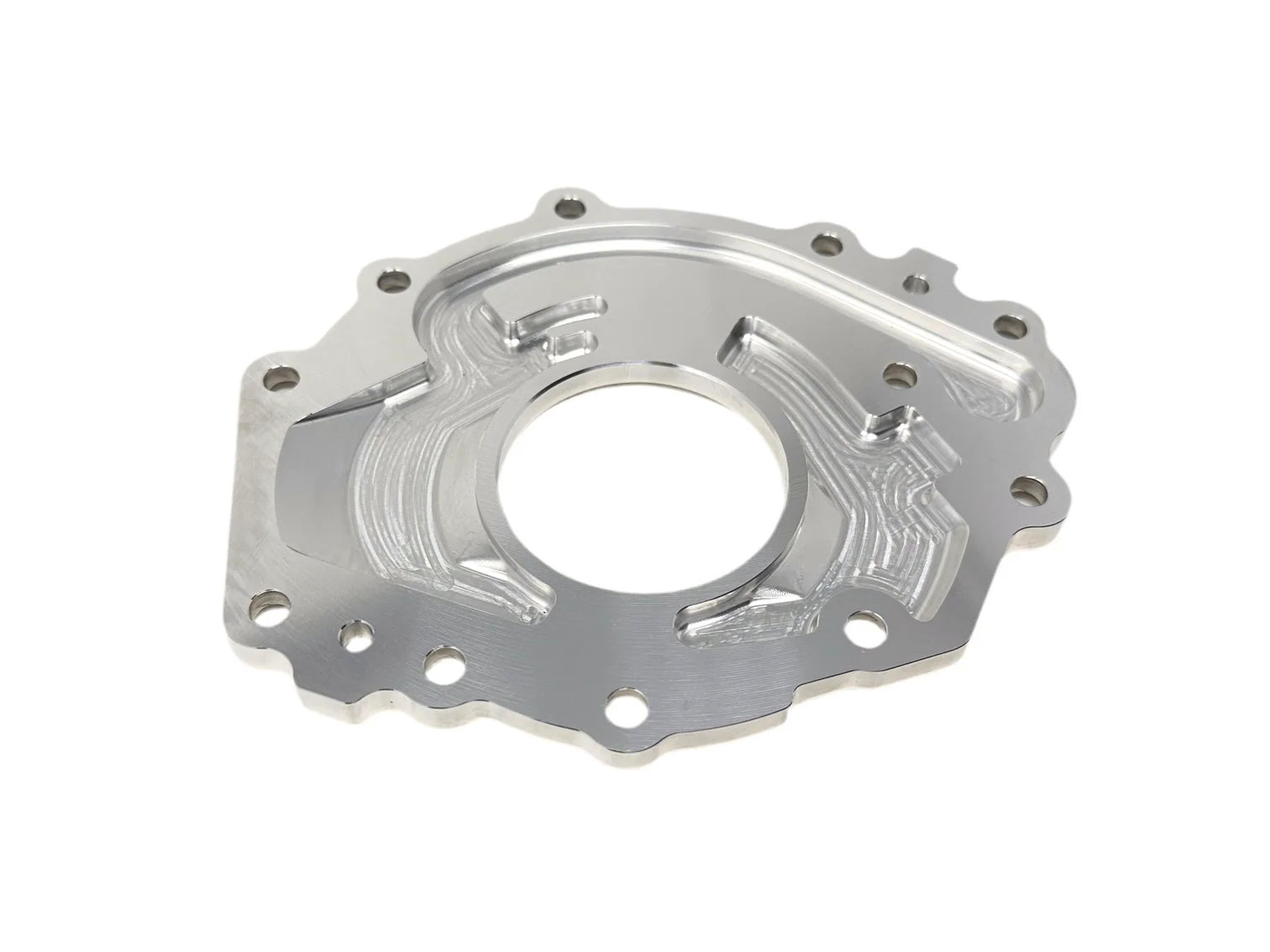

* Optional billet 7075 back plate which is stuffer than the factory cast item and helps with preventing pump flex and adds to the rigidity.
* Does not include HKS oil pump - For illustration purpose only.
* Oil restrictor highly advised and we have different sizes in stock: Click Here
* Extended oil capacity sump and gated baffle is mandatory on high flow oil pumps to prevent oil depletion inside of the standard sump when using high revs constantly for example on track. We have ready made 8.5litre kits available read to weld on to your existing sump. Click Here
